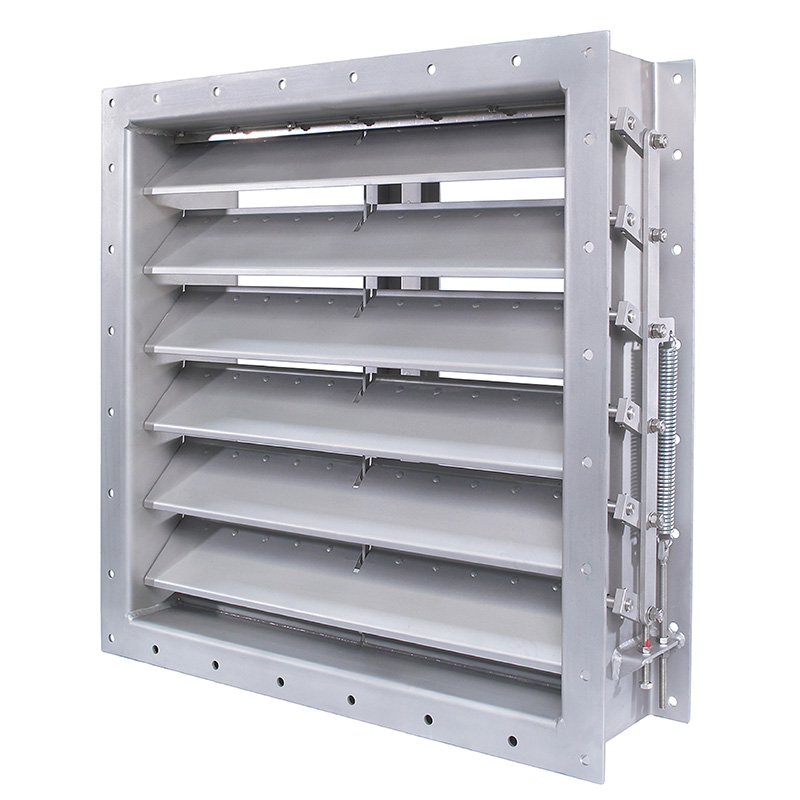

Blast-Proof / Explosion Relief Ventilation Damper

The anti-blast / explosion-relief ventilation damper is recommended to attenuate the effects of overpressure produced by chemical reactions or gas explosions, and thus to protect your ventilation network and the equipment connected to it.

TECHNICAL SPECIFICATIONS
Dimensions: from 200 x 500 mm to 1250 x 2000 mm
Overall damper depth: 360 mm
Max. permissible temperature: 100°C
Maximum overpressure: 0.45 bar

TECHNICAL DATA
The pressure wave withstood by the RK-F10 overpressure damper can build up in approximately 100 ms with a positive pressure of 0.45 bar. The casing, blades and damper rods are made of stainless steel.
