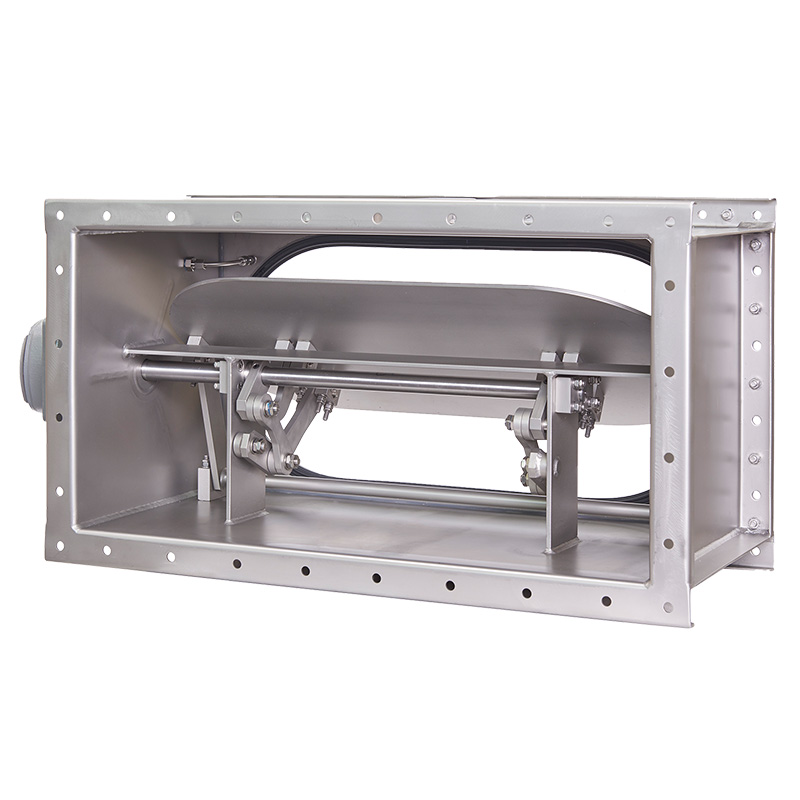

Rectangular Containment Damper (DIN 25496)

The rectangular containment damper (DIN 25496) is designed for installations which, for safety reasons, require certain sections of the ductwork or of the machine to be hermetically isolated.

TECHNICAL SPECIFICATIONS
Dimensions: 400 x 400 to 1200 x 1200 mm
Max. temperature: from -40°C up to +100°C
Max. pressure: 10,000 Pa
Maximum internal / external leakage to DIN 25 496: <10 L/(h-m²) at 1 bar, 20°C and p = 2,000 Pa

TECHNICAL DATA
Actuator: electric, pneumatic, manual
Stainless steel (AISI/SAE 304)
